When it comes to sterilizing medical instruments, precision and safety are everything. At our facility in Chennai, we specialize in manufacturing high-quality Vertical and Horizontal Autoclave Hospital Machines, designed to meet the strict standards of modern healthcare environments.

? What is an Autoclave Hospital Machine?

An autoclave is a specialized sterilization device that uses high-pressure steam to eliminate bacteria, viruses, fungi, spores, and other harmful microorganisms from medical equipment. It ensures that instruments are safe and sterile before they’re reused — an essential step in preventing infections and maintaining patient safety.

? Types of Hospital Autoclaves We Manufacture

Understanding the different types of autoclaves helps you choose the one that best fits your facility’s requirements. We offer both Vertical and Horizontal Autoclave models, available with semi-automatic or fully automatic door operation.

Benefits of Using Autoclave Hospital Machines

1. Complete Sterilization for Infection Control
   Autoclaves use high-pressure steam to eliminate bacteria, viruses, fungi, and spores — ensuring thorough sterilization of medical instruments and reducing the risk of hospital-acquired infections.
2. Efficient and Quick Sterilization Cycles
   Thanks to steam storage and quick successive cycles, autoclaves help maintain operational efficiency in busy hospital environments without compromising on safety.
3. Durable Stainless Steel Construction
   Both vertical and horizontal autoclaves are made with heavy gauge SS304/316 stainless steel, ensuring long-term durability, corrosion resistance, and hygiene compliance.
4. Dual Options to Suit Different Needs

        Vertical Autoclaves are ideal for compact spaces and smaller setups.

         Horizontal Autoclaves are suited for larger hospitals and high-volume sterilization.

5. Advanced Automation (Optional)
   The automatic versions feature a PLC-based control system (SIEMENS) with programmable sterilization cycles, digital displays, and customizable settings — offering ease of use and consistent results with minimal manual intervention.
6. Safety Comes First
   Built-in safety devices such as pressure switches, safety valves, vacuum breakers, low water level cut-offs, and self-locking doors ensure operator and equipment protection.
7. Compliance with BIS Standards
   All models are manufactured in accordance with BIS - IS:3829 (latest edition), with ISI marking and complete documentation — ensuring regulatory compliance and quality assurance.
8. Flexible Power Options
   Available in both 440V, 3 Phase and optional 230V, 1 Phase models, making it suitable for different hospital power infrastructures.
9. Easy Maintenance and Reliable Testing
   Each autoclave is hydraulically tested up to 2 to 2.5 times the working pressure, and comes with a User Manual, Warranty Certificate, Hydraulic Test Certificate, and Calibration Certificate for hassle-free maintenance and validation.

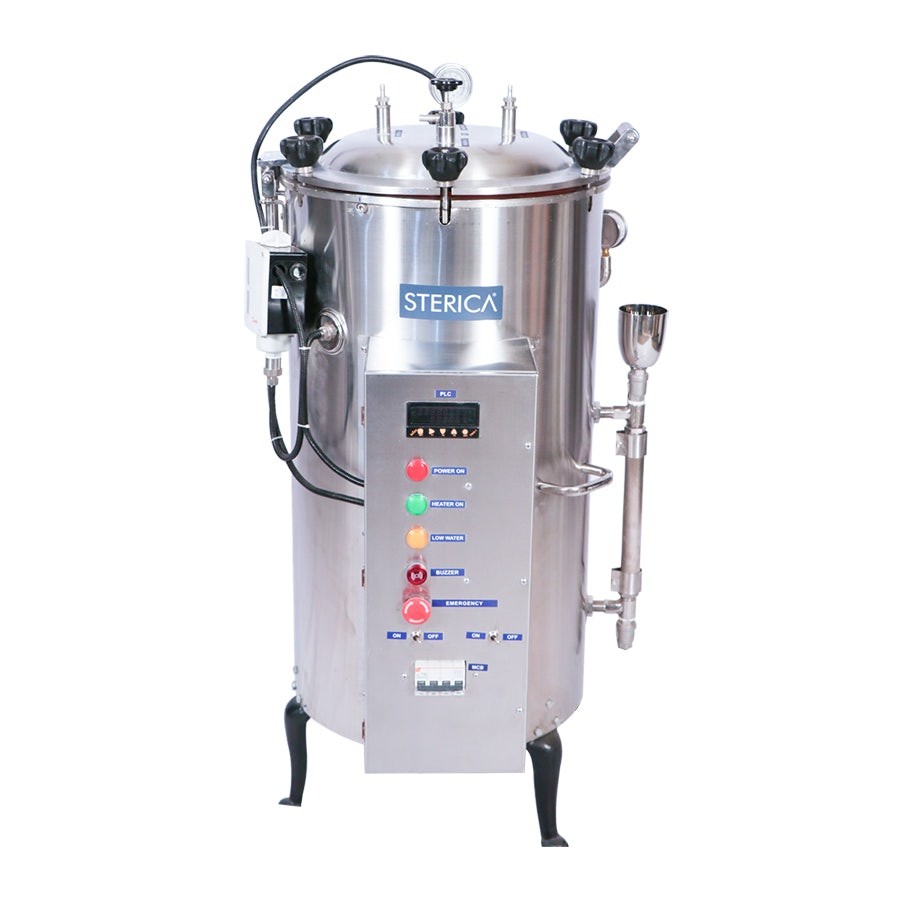

 Vertical Autoclave – Compact & Efficient

Ideal for clinics, diagnostic labs, and smaller healthcare setups, vertical autoclaves save space while delivering powerful sterilization performance.

Key Features:

• Triple-walled stainless steel body (SS304/316 grade) with steam jacket and outer insulation.
• Built-in steam storage for quick successive sterilizations.
• Mechanical ejector drying system for complete drying.
• Automatic models with SIEMENS PLC control – adjustable time, pressure & temperature.
• Safety systems include pressure switches, vacuum breakers, and low-water level cut-off.
• Tested to withstand 2.5 times the working pressure for enhanced durability.
• Power Supply: 440V/3 Phase or Optional 230V/1 Phase.

The manual version includes all the features mentioned above, while the automatic version has additional features as listed below.

Manufactured in accordance with IS:3829 (Part 3) standards - for applicable models
Automatic SIEMENS PLC based control system
Sterilization pressure, temperature and drying time can be adjusted
Automatic sterilization by pre-programming the cycle
Digital display for pressure, temperature, power failure, low water, working time, end of sterilisation.

Standards & Certifications:
? IS:3829 (Part 3) Compliance
? ISI Marked
? Complete Documentation – User Manual, Warranty, Hydraulic & Calibration Certificates

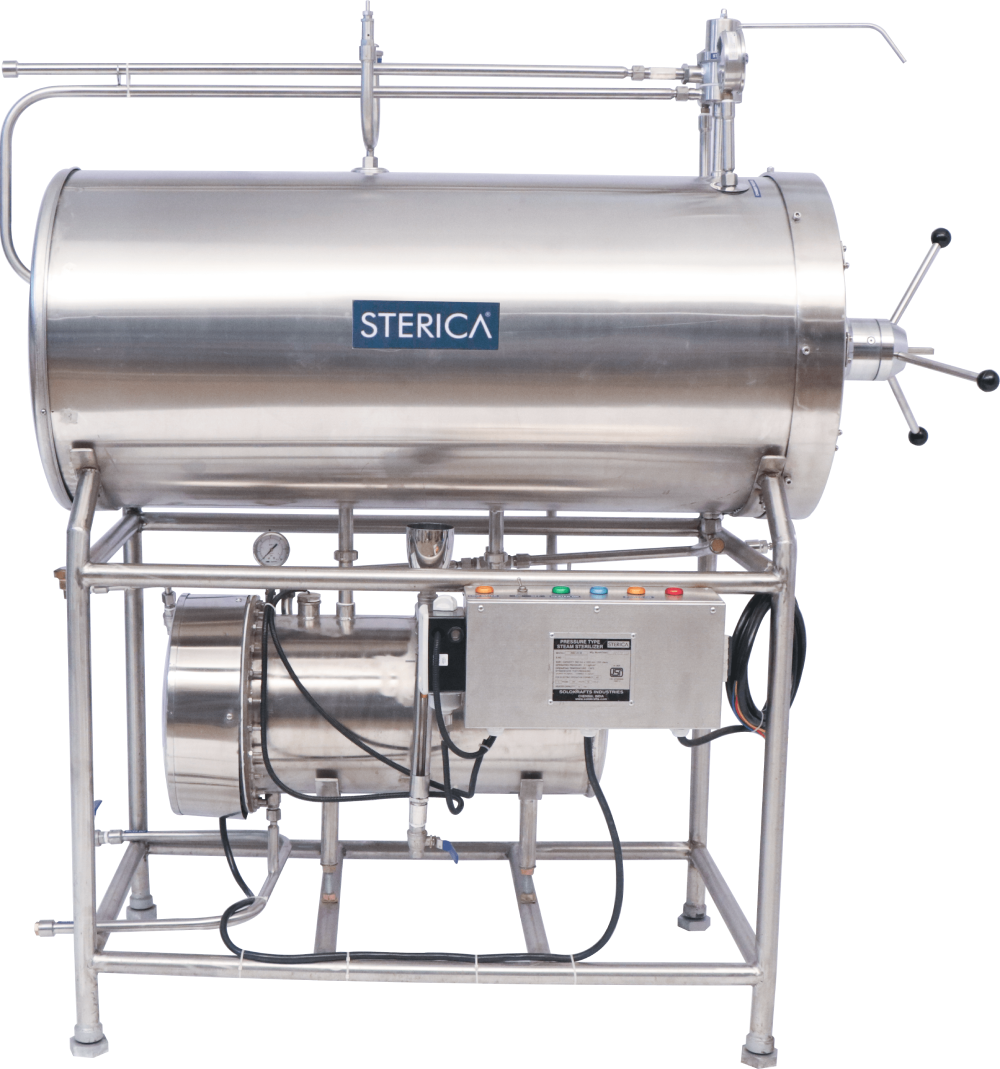

Horizontal Autoclave – Built for High Volume

Designed for hospitals and large-scale laboratories, horizontal autoclaves offer superior capacity and faster turnaround for bulk instrument sterilization.

Key Features:

• Triple-walled SS304/316 construction including chamber, door, and steam generator.
• Hinge-type single door with radial locking for safety.
• Expandable silicone gasket rated up to 140°C.
• Multiport valve, vacuum drying, and stainless steel trays included.
• Multiple safety mechanisms: pressure switches, door interlocks, low water cut-off, etc.
• Hydrostatically tested up to 2.5x pressure for maximum safety.

?  Automatic operation by PLC-based microprocessor (SIEMENS make).

?  Up to six different settings of the program cycle.

?  Adjustable electrical selector switch for changing programs.

?  Suitable alarm indicating the end of the sterilization cycle.

Standards & Certifications:
? BIS - IS:3829 Latest Edition with ISI mark
? Full technical documentation provided

? Why Choose Us?

• ? Trusted Manufacturer in Chennai with years of industry expertise
• ? Customizable models to meet your specific sterilization needs
• ? Certified quality standards for safety, reliability, and performance
• ? Complete support with installation, documentation, and servicing

For hospitals, labs, and clinics looking to invest in autoclave machines that are efficient, reliable, and built to last, we offer the perfect solution. Reach out to us today and discover how our Vertical and Horizontal Autoclave machines can enhance the hygiene standards of your healthcare facility.

Vertical Autoclaves are ideal for compact spaces and smaller setups.

Horizontal Autoclaves are suited for larger hospitals and high-volume sterilization.
